Groundhog BH30D Mini Excavator
Groundhog BH30D demo and information video
Starting at $29,900
BH30D Basic Info
The BH30D comes equipped with a 30 HP Kubota D1703 Diesel Engine, 4 Post Canopy, Hydraulic Joysticks, Glow Plugs, Oil Cooler, 2 Speed and Side Swing Boom.
* Hydraulic pilot servo operation system
* Steel or rubber track
* Telescopic track frame
* Compact and light with a small turning radius
* Open cabin with canopy
* LED Boom light
Optional Features
* 2 post ROPS
* Cab enclosure
* Heat and air conditioning
* Color options
* Side swing boom
* Retractable or expandable tracks
* Steel tracks
* 2 Speed
* Window tint
SPECS
Weight – Rubber Tracks: 5800 lbs
Weight – Steel Tracks: 6400 lbs
Engine: Kubota D1703
HP: 30
Machine Width: 60″
Machine Height: 7’9″
Ground Clearance: 9″
Track Length: 77″
9″ Track Size: 230x48x88″
Track To Blade: 96″
Track Width: 9″
Track Height: 12.5″
Max Digging Height: 8′ 6″
Max Dumping Height: 10'1″
Max Reach: 13'2″
Max Digging Radius: 15'6″
Bucket Size: 20″ Tooth
Max Digging Depth: 9'5″

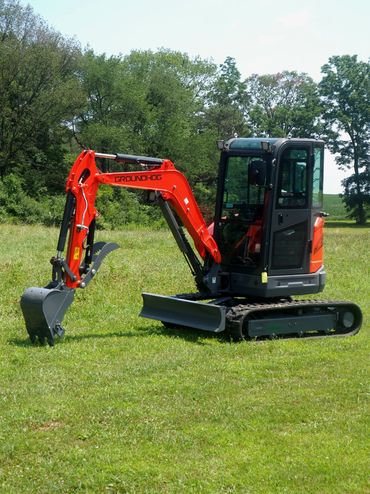

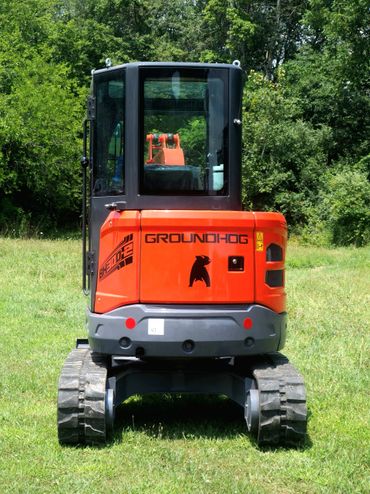

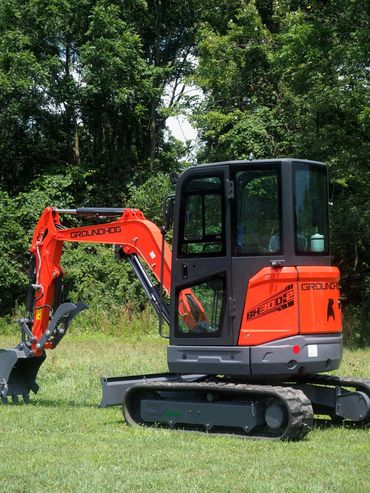

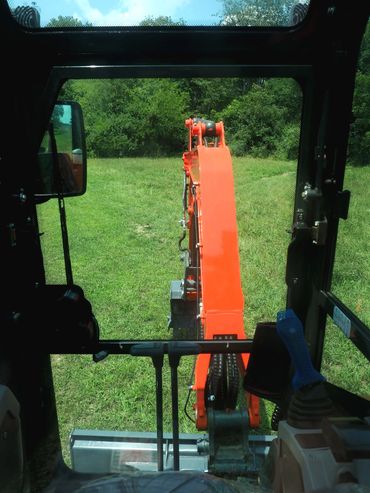

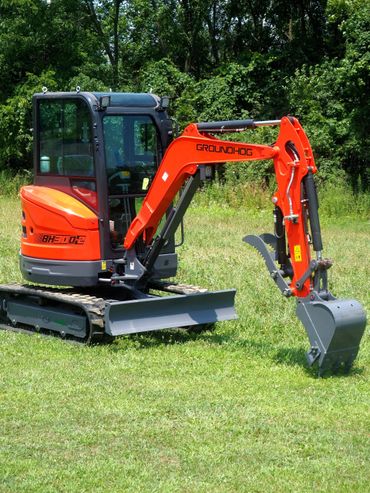

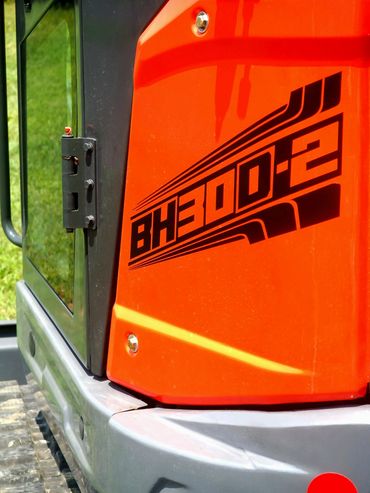

Groundhog BH30D-2 Mini Excavator
Groundhog BH30D-2 mini excavator walkthrough
Starting at $30,900
BH30D-2 Basic Info

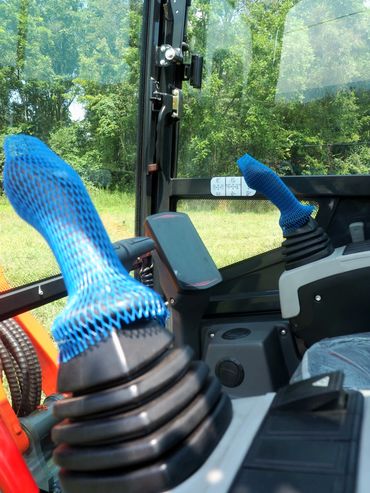

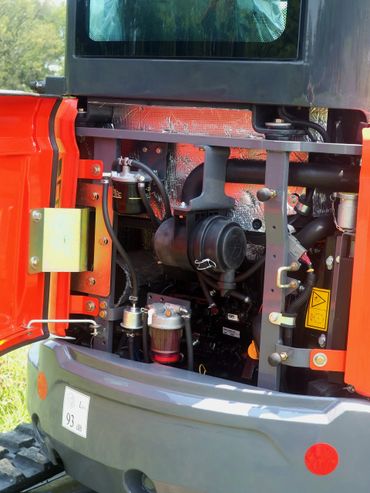

The BH30D-2 comes equipped with a Yanmar 3TNV80F Diesel Engine, hydraulic joysticks, Oil Cooler, Side Swing Boom, 2 Speed and Eddie Drives.
* Hydraulic pilot servo operation system
* Steel or rubber track
* Telescopic track frame
* Open cabin with canopy
* LED Boom light
Optional Features
* 2 post ROPS
* Cab enclosure
* Heat NO A/C
* Color options
* Retractable or expandable tracks
* Steel tracks
* Window tint
SPECS
Operating Weight: 6100 lbs
Engine: Yanmar 3TNV80F
HP: 30
Machine Width: 61″
Machine Height: 8'2″
Ground Clearance: 10″
Track Length: 80″
9″ Track Size: 300x55x80″
Track To Blade: 92″
Track Width: 9″
Track Height: 12.5″
Max Digging Height: 13'11″
Max Dumping Height: 10'1″
Max Reach: 13'4″
Max Digging Radius: 15'3"
Bucket Size: 18″ Tooth
Pin size: 30mm

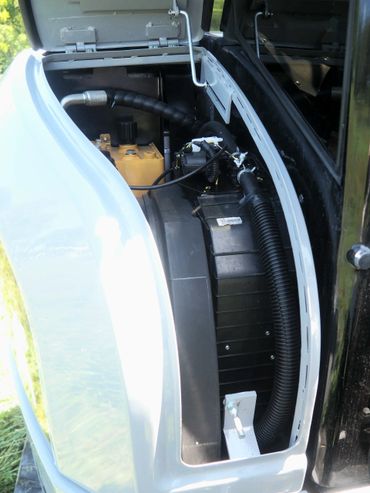

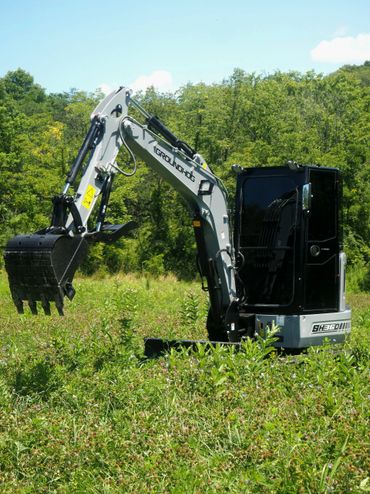

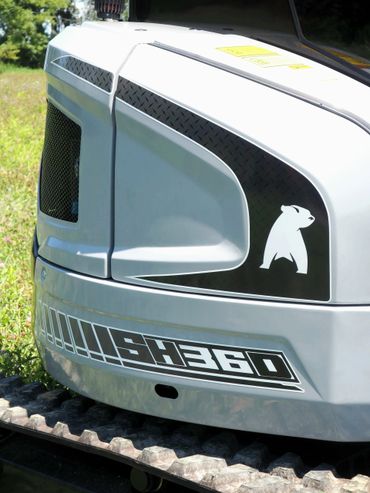

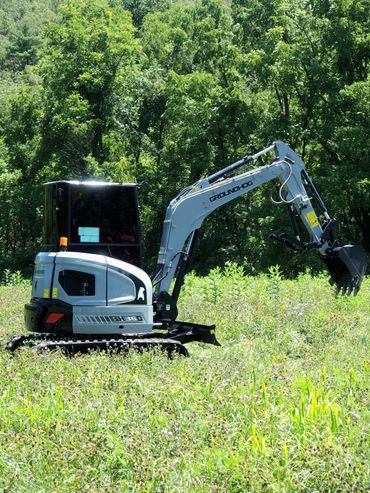

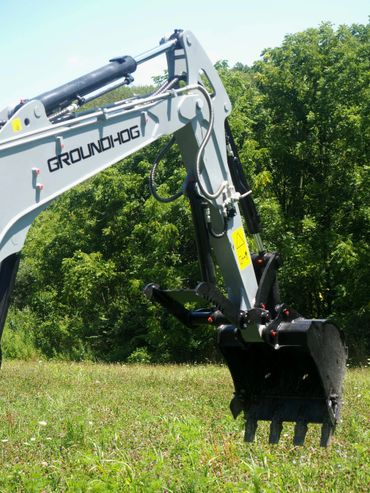

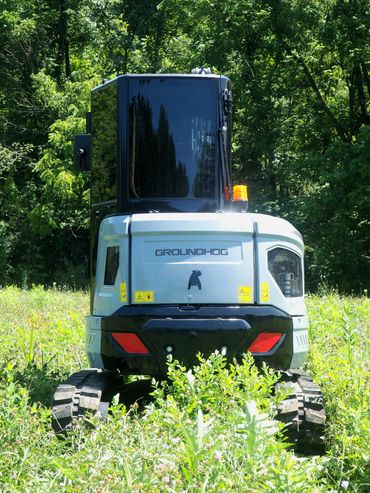

Groundhog SH36D Mini Excavator
Groundhog SH36D mini excavator walkthrough
Starting at $44,900
SH36D Basic Info

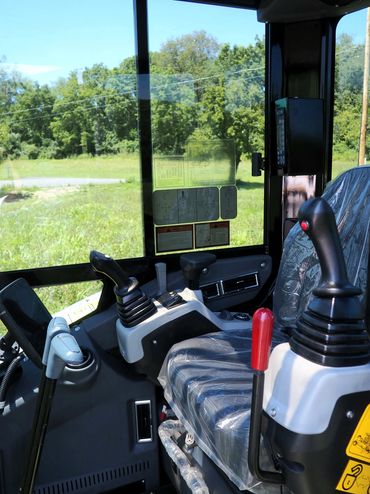

The SH36D comes equipped with a Yanmar 3TNV88 Diesel Engine, Enclosed Cab w/Heat & A/C, Hydraulic Joysticks, Oil Cooler, Glow Plugs, Side Swing Boom, 2 Speed, Variable Piston Pump, Premium Display, Push-to-Start, Additional Counterweight, Zero Tail Swing, Auto-Idle, Window Tint and Stereo with Bluetooth connectivity.
* Hydraulic pilot servo operation system
* Steel or rubber track
* Telescopic track frame
* LED Boom light
Optional Features
* This unit comes fully loaded.
* Grey only
* Steel tracks
SPECS
Operating Weight: 8100 lbs
Engine: Yanmar 3TNV88
HP: 36
Machine Width: 68″
Machine Height: 8'5″
Ground Clearance: 11″
Track Length: 83″
Track To Blade: 99″
Track Width: 11.5″
Track Height: 12.5″
Max Digging Height: 13'11″
Max Dumping Height: 11'3″
Max Reach: 15'10″
Max Digging Radius: 17'9"
Max Digging Depth: 10'6"
Bucket Size: 18″ Tooth
Pin size: 30mm
